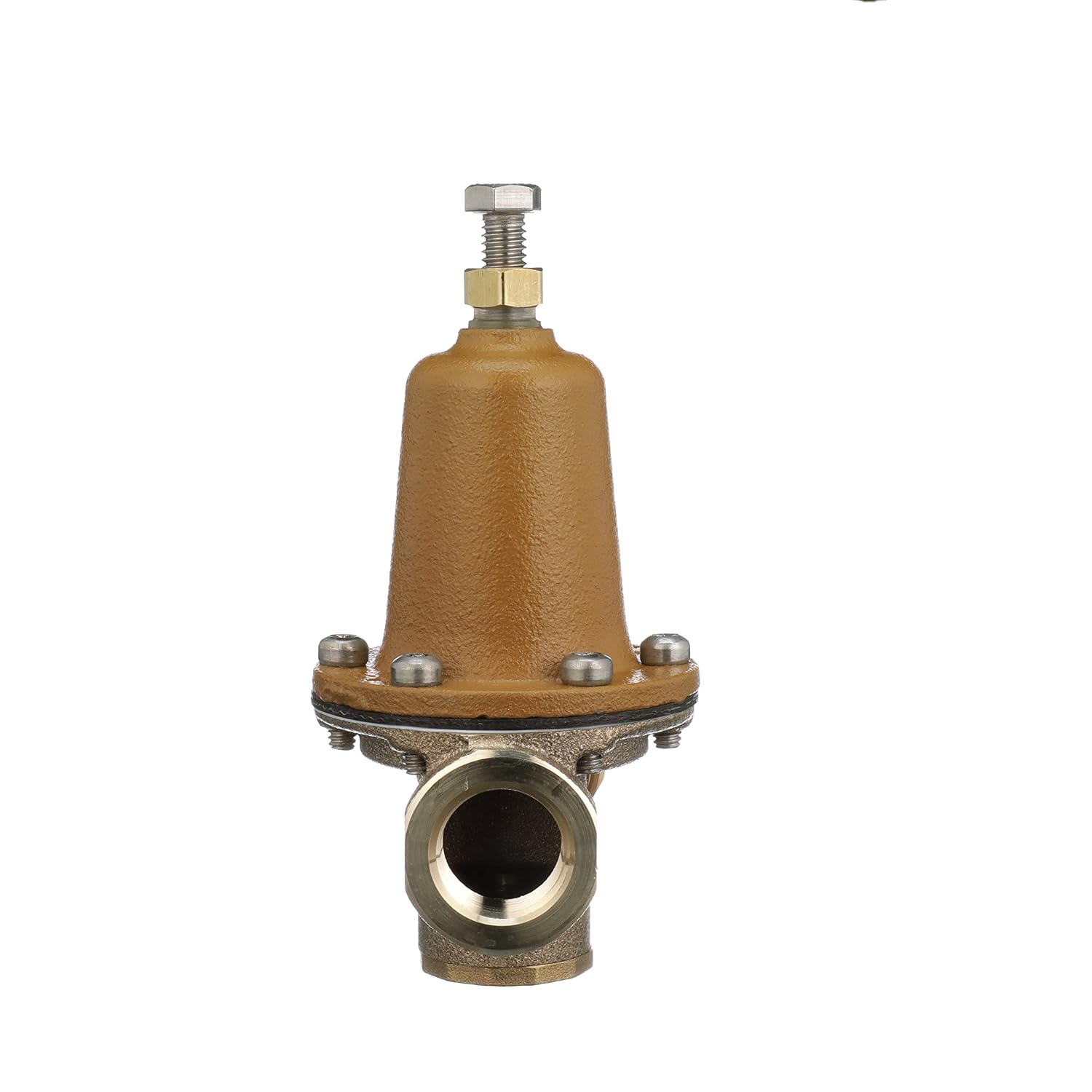

Watts LF25AUB-HP-Z3 Water Pressure Reducing Valve NPT Female Union x NPT Female, High Pressure Polymer Seat, 3/4 Inch

This 3/4 inch lead free brass water pressure reducing valve for high pressure ranges is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a replaceable seat module, NPT threaded female union inlet by NPT female outlet and a bypass feature to control thermal expansion pressure. The temperature range is 33 to 180 degrees F (0.5 to 82 degrees C). The high pressure range is 75 to 125 psi (518 to 863 kPa) with the standard setting at 90 psi (621 kPa).

• Reduces incoming water pressure to protect plumbing systems and reduce water consumption in commercial industrial and residential applications
• Ideal for high-pressure applications or water supply pressures range is 75 to 125 psi (518 to 863 kPa) with the standard setting at 90 psi (621 kPa).
• Lead free copper silicon alloy with stainless steel strainer and corrosion resistant adjusting and cage screws, high-temperature diaphragm, replaceable seat module
• End connection options such as PEX, CPVC, and Quick-Connect
• The standard bypass feature permits the flow of water back through the valve into the main when pressures, due to thermal expansion on the outlet side of the valve, exceed the pressure in the main supply
