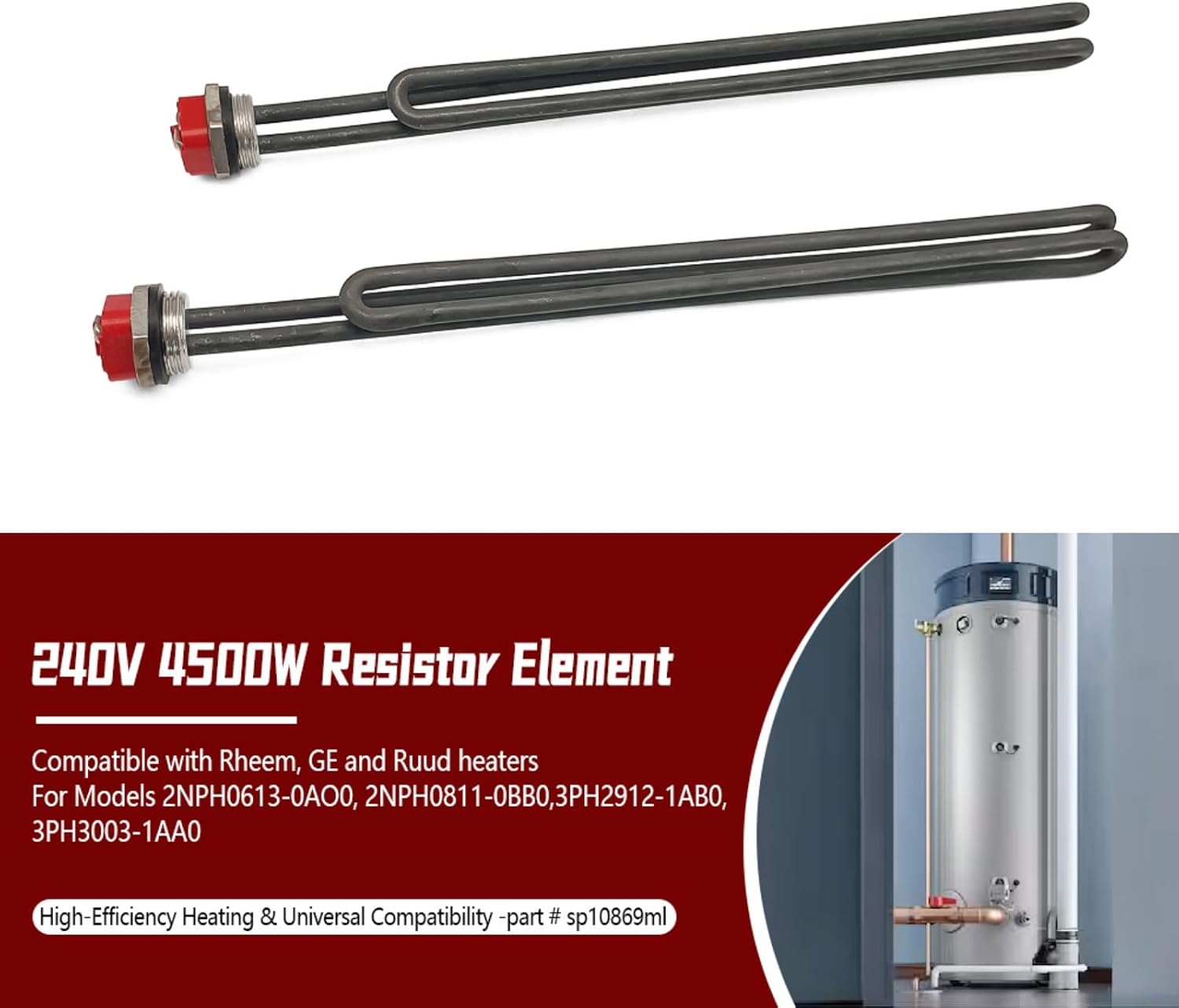

SP10869ML Water Heater Element 240V 4500W Compatible with Rheem GE Ruud Heaters, for 2NPH0613-0AO0 2NPH0811-0BB0 3PH2912-1AB0 3PH3003-1AA0, Screw-In Resistor

FITMENT: 4500w 240v heating element SP10869ML compatible with Rheem, GE, Ruud Heaters SPEC: Watt Density Classification: LWD Input Voltage: 208V / 240V Wattage at 208V: 3380W Watt Density at 208V (W/sq. in.): 60 Wattage at 240V: 4500W Watt Density at 240V (W/sq. in. ): 80 Cold Resistance: 12.80 ohms Outer Sheath Material: Stainless Steel (Incoloy) Resistored: Yes Configuration: Foldback Element Diameter: .316 in Element Length - Flange to Tip: 15.56 in Mounting Type: Threaded Actual Thread Size - Outside Diameter (in.): 1-9/32 Nominal Thread Size: 1 inch Threads per Inch: 11-1/2 Thread Type Series Designation: NPSM Hex Head Size - Across Flats: 1-1/2 in PACKAGE INCLUDES: 1x SP10869ML Resistor Element

• FITMENT: The 4500w 240v SP10869ML heating element compatible with Rheem, GE, Ruud Heaters. Dual-voltage operation (208V/3380W and 240V/4500W). Operate efficiently on both standard commercial/industrial (208V) and residential (240V) voltages
• SPEC: The SP10869ML water heater element threaded NPSM design (1-9/32" outer diameter, 11-1/2 threads per inch), hassle-free replacement for models like 2NPH0613-0AO0, 2NPH0811-0BB0, 3PH2912-1AB0, 3PH3003-1AA0, 3PH2912-6AA0, 31P06DHRB060600E – AO 065G, 31P07DHRA060600E – AO 065G, 31U000
• PRECISE FIT: This heater element designed with 15.56" length and 0.316" diameter fit seamlessly into compatible units. Foldback configuration maximizes heating surface area within tank constraints, improving heat transfer efficiency
• DURABLE USE: Designed with an LWD classification, this low-watt-density element (80 W/sq. in. at 240V) minimizes stress, reducing scale formation and extending lifespan. The constant 12.8-ohm impedance eliminates voltage fluctuations, ensuring stable operation in hydronic systems, boilers, or water heaters
• EASY INSTALLATION: Always use a new gasket when installing. Ensure power is OFF and the tank is drained below the element level before replacement. Tighten firmly, usually hand-tight plus 1/4 to 1/2 turn with the wrench. Over-tightening can damage the tank boss
