MINISFORUM MS-02 Ultra Workstation Core Ultra 5 235HX Barebone Mini PC Without Storage/OS, HDMI|USB4|2xUSB4 V2 Output, 4X DDR5 SO-DIMM Slot, 2X SSD Slot, 1x10G RJ45, 1x2.5G RJ45 Port, WiFi7/BT5.4 PC

<p>The MS-02 Ultra Mini Workstation is equipped with Intel Core Ultra 5 Processor 235HX(14C/14T,up to 5.1 GHz) that uses a hybrid architecture. featuring the built-in Intel Graphics(max frequency up to 1.8GHz) to enhance the user experience with graphics acceleration and ray tracing hardware. It is designed for next-generation efficient high-performance gaming and widely used in games, 3D rendering, video editing and teleworking.</p> <br><p><b>Specifications</b></p><br> <ul><li><b>CPU:</b>Intel Core Ultra 5 235HX (14C/14T, up to 5.1 GHz) </li><li><b>Processor Graphics:</b>Intel Graphics(Internal), up to 1.8 GHz </li><li><b>RAM:</b>4x DDR5 SO-DIMM slots (Non-ECC; XMP overclocking not supported) </li><li><b>Storage:</b>2xM.22280 NVMeSSDslots (PCIe 4.0 x4. Up to 8TB each </li><li><b>Wireless Connectivity:</b> Wi-Fi 7 &amp; Bluetooth 5.4 </li><li><b>Video Output:</b>1x HDMI 2.1 FRL (8K@60Hz, 4K@120Hz) </li><li>1 x USB4 with DP Alt Mode (8K@60Hz, 4K@120Hz)</li></ul> <ul><li>2 x USB4 V2 with DP Alt Mode (8K@60Hz, 4K@120Hz)</li></ul> <p><b>Ports and Buttons:</b></p> <ul><li>1x 10GbE RJ45Port </li><li>1x 2.5GbE RJ45 Port </li><li>1 x HDMI 2.1 FRL </li><li>1 x USB4 Type-C Port (40 Gbps, DP 2.0 Alt Mode, 15W PID) </li><li>2 x USB4 V2 Type-C Ports (80 Gbps, DP 2.0 Alt Mode, 15W PD) </li><li>3 x USB-A 10Gbps (USB 3.2 Gen 2) </li><li>1x USB 10GbpsType-A Port (USB 3.2 Gen 2) </li><li>1 x PCle 5.0 x16 Slot (bifurcation support) </li><li>1×PCle 4.0 x4 Slot </li><li>1xPCle 4.0 x16 Slot (PCIe 4.0 x4+x4+x4+x4) </li><li>1x 3.5mm Audio Jack </li><li>1x Power Button</li></ul> <p><b>Packing List</b></p> <ul><li>1* MS-02 Mini Workstation </li><li>1* HDMI Cable </li><li>1*US Power Adapter </li><li>1*Manual</li><li></li></ul>

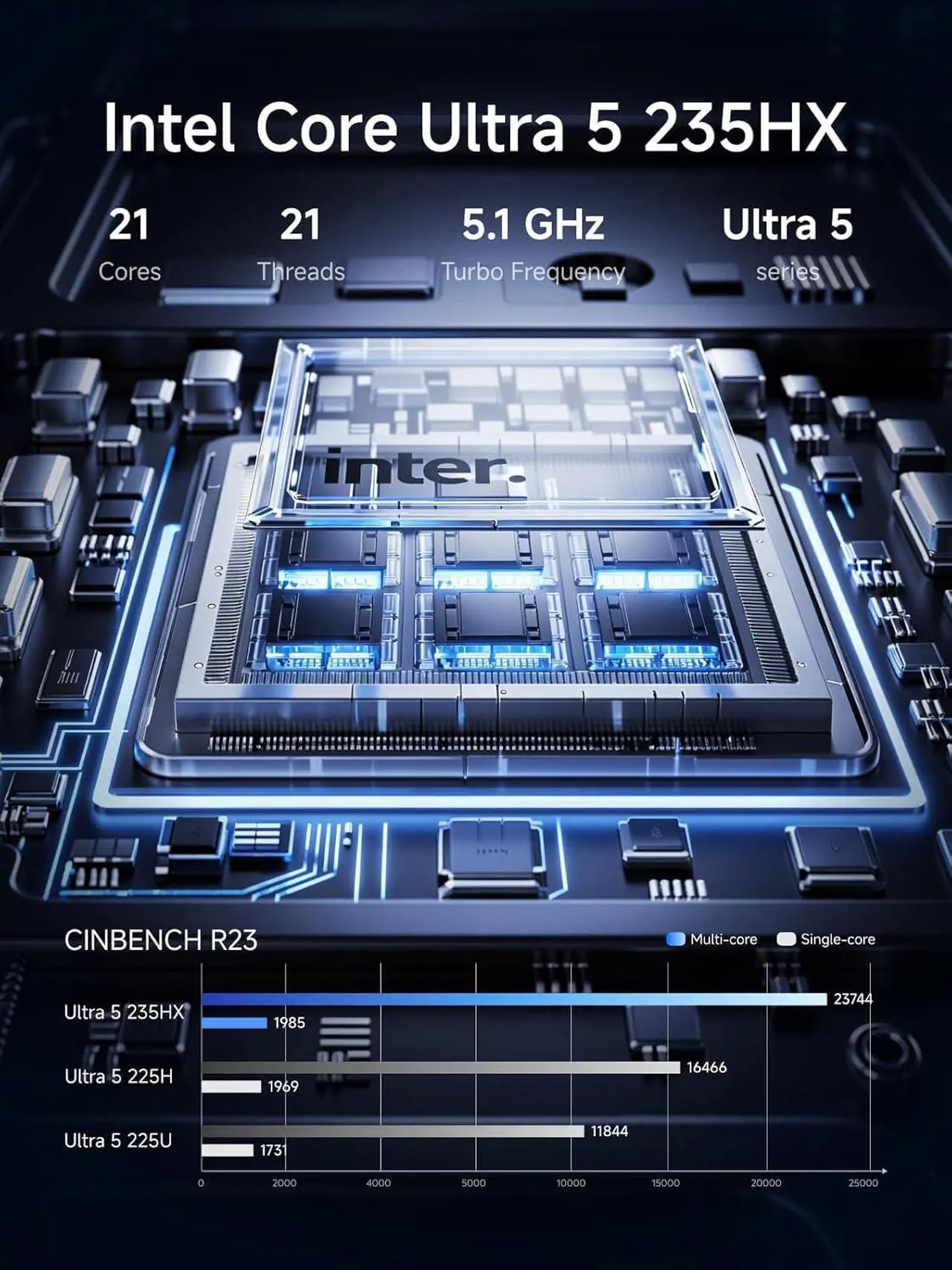

• 【Powerful Processor and Graphics】The MS-02 Ultra Mini Workstation is equipped with Intel Core Ultra 5 Processor 235HX(14C/14T,up to 5.1 GHz) that uses a hybrid architecture. featuring the built-in Intel Graphics(max frequency up to 1.8GHz) to enhance the user experience with graphics acceleration and ray tracing hardware. It is designed for next-generation efficient high-performance gaming and widely used in games, 3D rendering, video editing and teleworking.

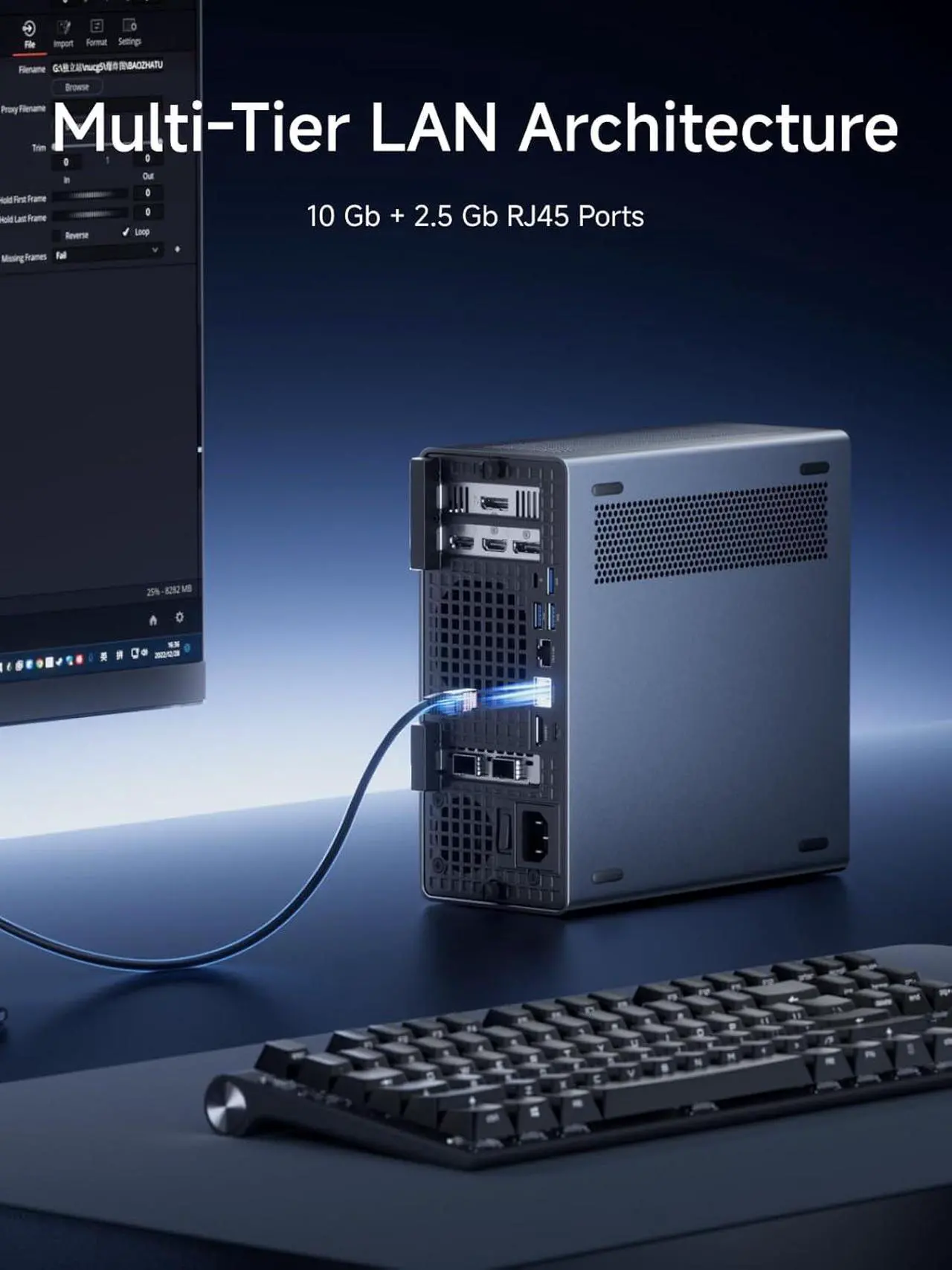

• 【Multiple Network Ports】This Mini workstation comes with one 10G and one 2.5G RJ45 ports., which is ideal for users demanding ultra-fast wired network connections to high-speed LANs, network storage devices, servers etc. It’s suitable for connecting to high-speed home and office networks and other scenarios requiring rapid network transfers.

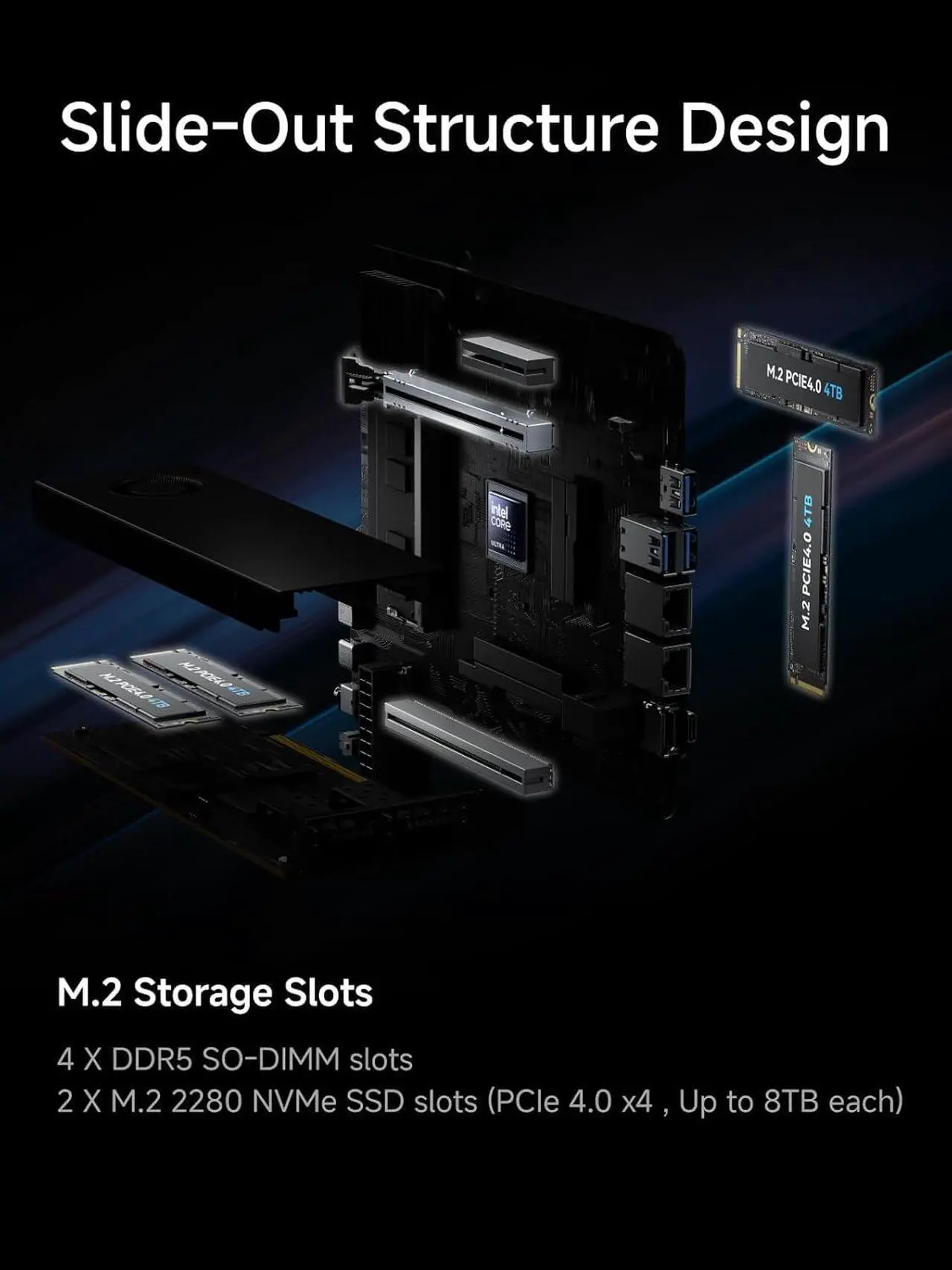

• 【Flexible Expandability】This Workstation equipped with Four DDR5 slots(total up to 256G) + Two M.2 2280 PCIe4.0 SSD slots. This SSD slots compatible with RAID0/1/5/10. You can store movies, videos, photos, important files easily. What’s more, it also comes with 1 x PCle 5.0 x16 Slot (bifurcation support ), 1xPCle4.0x16 Slot(PCIe4.0x4+x4+x4) and 1×PCle4.0x4 Slot.

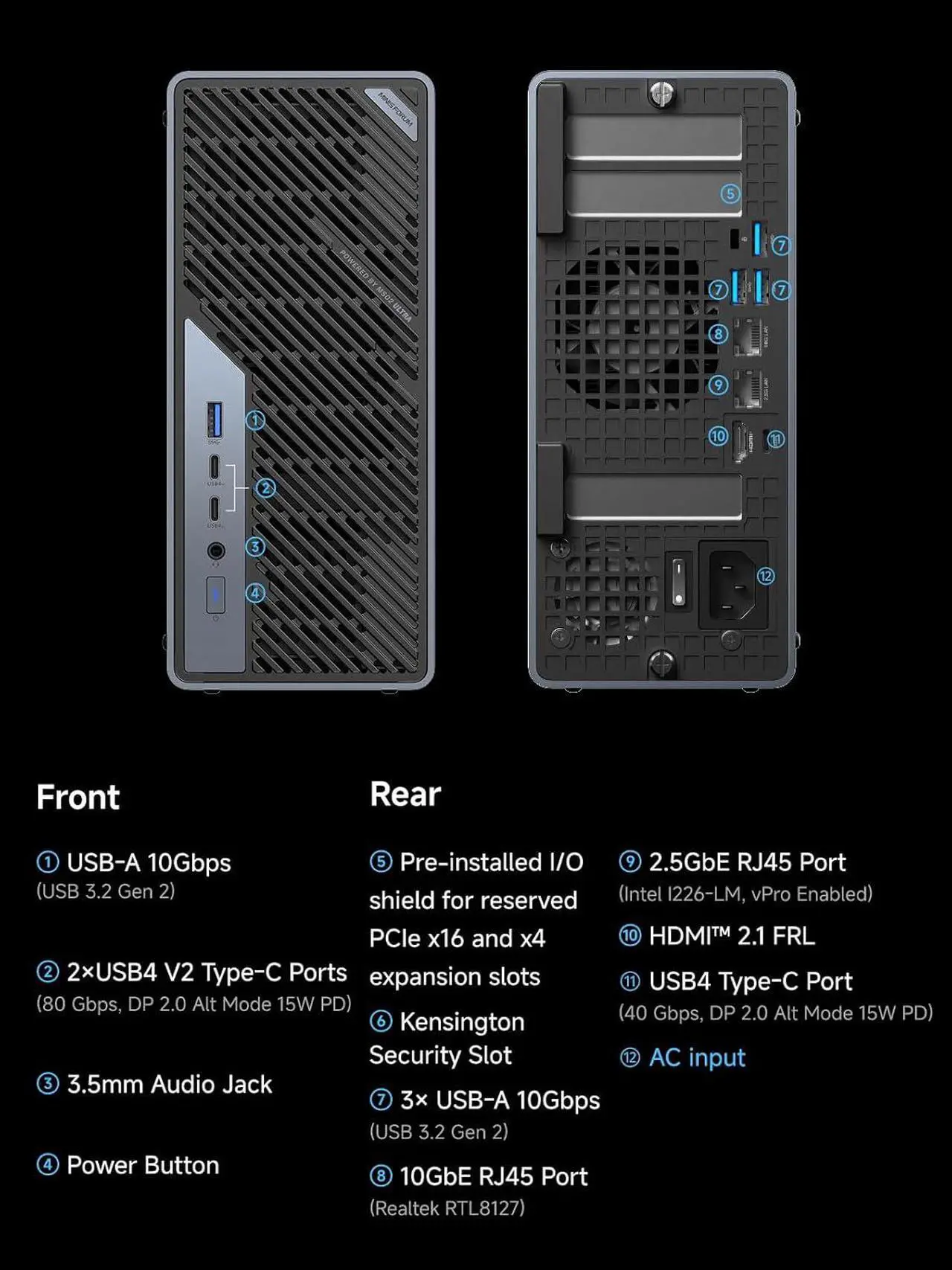

• 【Four Video Output】This MS-02 Ultra Workstation comes with 1x HDMI 2.1(8K@60Hz, 4K@120Hz), 1 x USB4 with DP Alt Mode (8K@60Hz, 4K@120Hz) and 2x USB4 V2 with DP Alt Mode (8K@60Hz, 4K@120Hz), which support multiple monitors display at the same time and provide a larger and wider filed of view and improve your work efficiency.
• 【Enhanced Heat Dissipation & Ultra-Quiet Performance】 This MS-02 Ultra used Server-Grade Airflow Design, dedicated CPU/GPU airflow channels with a server-grade exhaust layout ensure precise thermal control and sustained system stability. 6 heat pipes and dual fans dissipate up to 140W Turbo heat and sustain a 100W TDP load, delivering stable and quiet operation at just 36 dB. Integrated 350 W power design delivers reliable and efficient power for sustained performance-easy to deploy and maintain.
