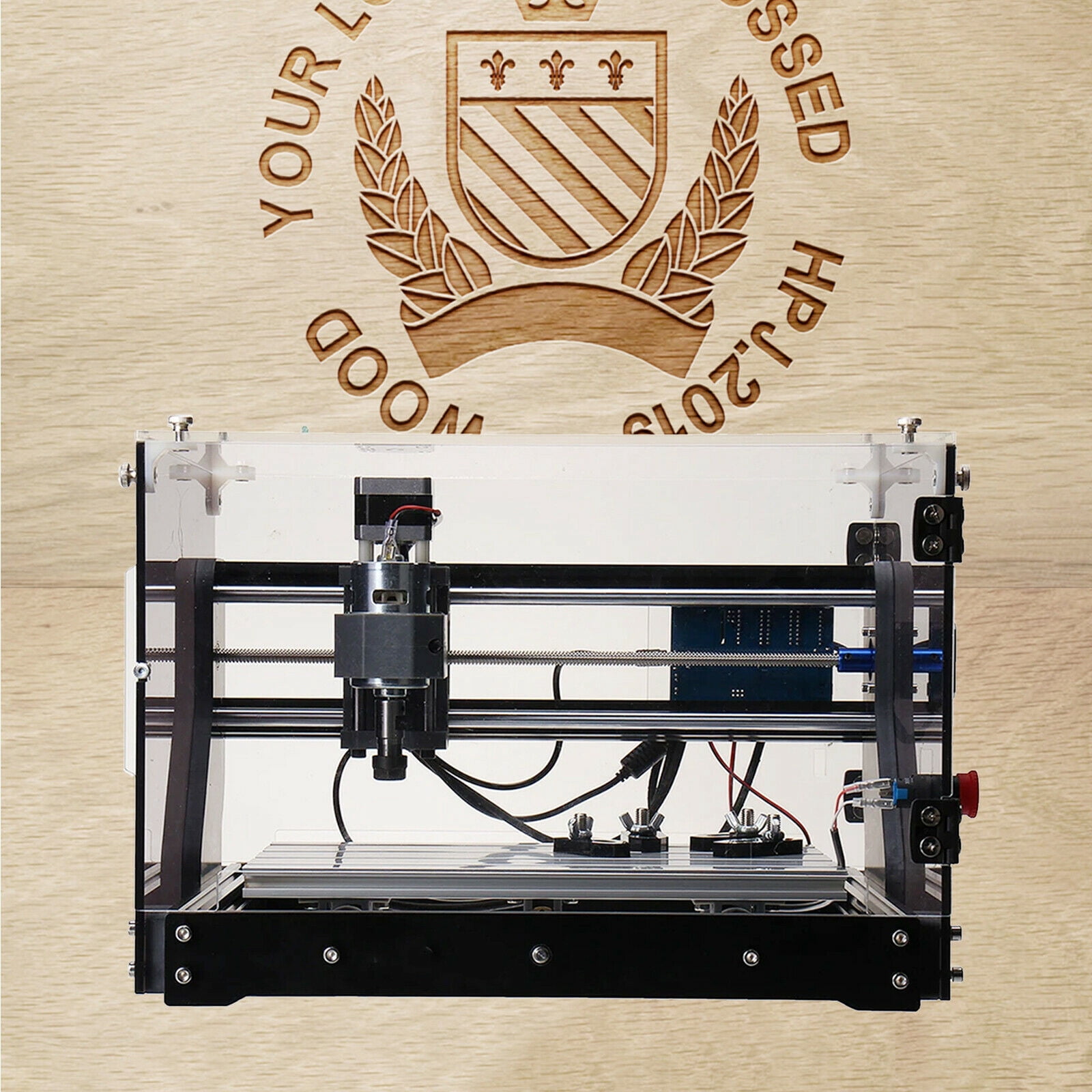

Fichiouy 3018-SE CNC Router Engraving Machine USB 3 Axis Engraver PCB Milling DIY Tool

<p>Fichiouy 3018-SE is an entry-level CNC router with enclosure for beginners and hobbyists. It is safer with a case to keep the spindle and dust inside while engraving.&nbsp; It is capable to carve and cut different materials such as plywood, MDF, PCB, acrylic and carve on soft metals surface like aluminum. It’s great for home DIY and small business. Limit switches and emergency stop switch are added to this machine for safety concern.</p> <p>【Specification】</p> <p>Material: Aluminum</p> <p>Supported Operating System: Windows XP, Win7, Win8, Win10</p> <p>Power Supply: DC 24V 5.6A</p> <p>Processing Area: 34*16*2cm/13*6*0.8inch</p> <p>Motor Type: Stepper Motor</p> <p>Motor Voltage: 12V</p> <p>Motor Phase Current: 1.3A</p> <p>Spindle Motor Voltage: 12V-36V</p> <p>Spindle Motor Rotation Speed(24V): 7000 rpm</p> <p>Spindle Motor Rotation Speed(36V): 9000 rpm</p> <p>Net Weight: 7.6kg/16.8lbs</p> <p>Gross Weight: 8.2kg/18lbs</p> <p>Product Size: 40*33*24cm/15.7*12.9*9.4inch</p> <p>Package Size: 52*32*18cm/20*12.5*7inch</p> <p>【Installation】</p> <p>1. The product needs to be installed by yourself and is easy to install.</p> <p>2. If you have any questions, please feel free to contact us, we are willing to answer your questions.</p> <p>【Package Included (Note：No Head Included)】</p> <p>1*Engraving Machine</p> <p>1*Adapter</p> <p>8*T-nuts</p> <p>1 Box*Gouges</p> <p>3*Power Cords</p> <p>8 Bag*Screws</p> <p>6*Installation Tools</p> <p>1*English Manual</p>

• 【Optimized assembly method】Main parts are pre-installed in the factory. Wires are labeled clearly for fast assembly. A detailed manual will guide you put the enclosure together.
• 【The control board is based on open-sourced grbl software】It supports Windows XP/7/8/10, Linux, Mac OS. It requires knowledge to make G-code. Pls contact us for tutorials if you are new to G-code.



• 【Great Performance】The engraving machine with the industrial-grade chip and 80W high-power spindle motor takes a very short time to complete the engraving, which is more highly efficient.

• 【Convenient to Use】You don't have to connect to a computer because of the offline controller. You only need to manually adjust the X, Y, Z-axis position as the starting point of engraving, manually turn on or off the spindle, and manually turn on or off the cooling fan.
• 【Various Materials】It is suitable for plastic, wood, acrylic, wood, leather, relief, horn, soft metals such as copper and aluminum.
